My home is equipped with numerous Zigbee smart devices that rely on a low-power mesh network for connectivity. While this setup has its advantages over traditional Wi-Fi, it still has some limitations. A dropped connection was resolved quickly and inexpensively.
01The distance between the bathroom and the central hub is considerable.
›Bathroom humidity sensor frequently disconnected from the internet connection.
A Zigbee temperature and humidity sensor is installed in my bathroom to monitor conditions. The extractor fan's operation relies on manual control, prompting the need for this sensor to alert me when humidity levels fall below the threshold following a shower. This allows me to switch off the fan accordingly.
Related ↗US AI models are being considered for access by trusted partners of the G7 leaders.The bathroom humidity sensor's internet connectivity issues stem from its remote location within the house, farthest from the central smart home hub and Zigbee coordinator. Although I successfully linked it to the Zigbee network, the connection remains unstable, frequently dropping out entirely in some cases.
The issue is indeed a pressing concern. The automation system fails to provide reliable alerts about humidity levels, which is inconsistent and unreliable. On several occasions, no alert is received because the sensor loses its connection. Frustration grew to a boiling point, prompting me to take action by introducing a router into my Zigbee network setup.
Read next ↗Gigabit internet purchase limited by a faulty switch port, restricting speed to 100Mbps unexpectedly.
A Zigbee temperatureand humidity sensoris installed in my bathroom to monitor conditions. The extractor fan's operation relies on manual control, prompting the need for this sensor to alert me when humiditylevels fall below the thresholdfollowing a shower. This allows me to switch off the fan accordingly.
08Zigbee routers offer network connectivity.

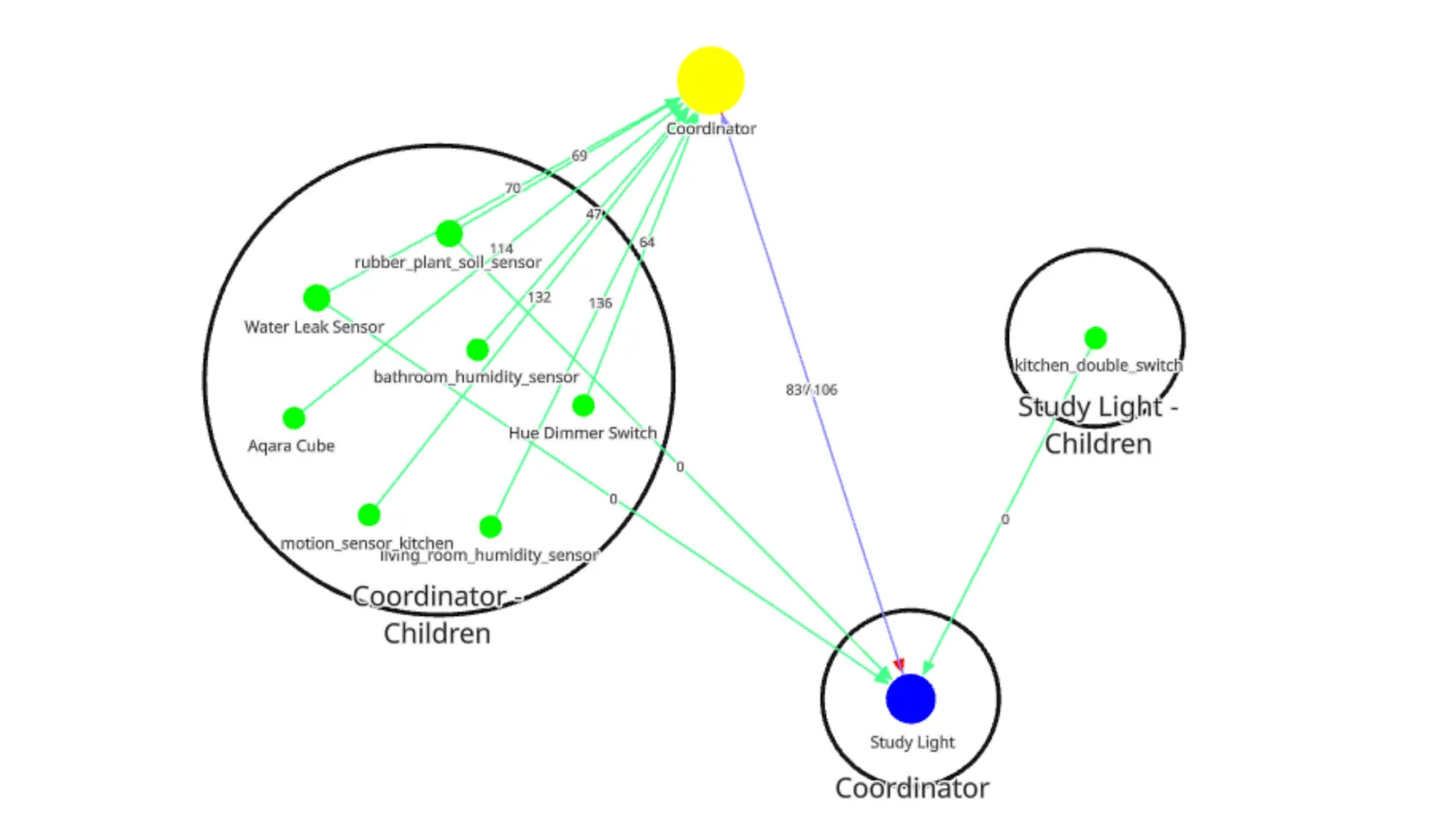

›Zigbee devices can function as network relays.
Zigbee networks operate as interconnected webs of communication. In contrast to traditional Wi-Fi configurations, where each device communicates solely with the central router, certain Zigbee devices can engage in peer-to-peer conversations. These conversations are facilitated by a specialized device known as a Zigbee router, which enables data exchange between the hub and other connected devices on the network.
A robust Zigbee network can withstand disruptions when devices are dispersed throughout a home. Weak connections often occur when a Wi-Fi device is situated too far from its corresponding router, necessitating relocation of either the device or the router, or supplementing with additional Wi-Fi equipment to stabilize the link.
Integrating a Zigbee router device between the coordinator and an end device enables seamless information exchange, fortifying the connection's stability. Plug-in Zigbee devices often assume a routing role, whereas battery-powered sensors function as end devices due to their limited availability and increased power consumption requirements.
Zigbee networks operateas interconnectedwebs of communication.In contrast totraditional Wi-Fi configurations, where each device communicates solely with the central router, certain Zigbee devices can engage in peer-to-peer conversations. These conversationsare facilitatedby a specialized device known as a Zigbee router, which enables data exchange between the hub and other connected devices on the network.
Integrating a Zigbee router device between thecoordinatorand an end device enables seamless information exchange, fortifying the connection's stability. Plug-in Zigbee devices often assume a routing role, whereas battery-powered sensors function as end devices due to their limited availability and increased power consumption requirements.
20An inexpensive smart plug offered a straightforward answer.

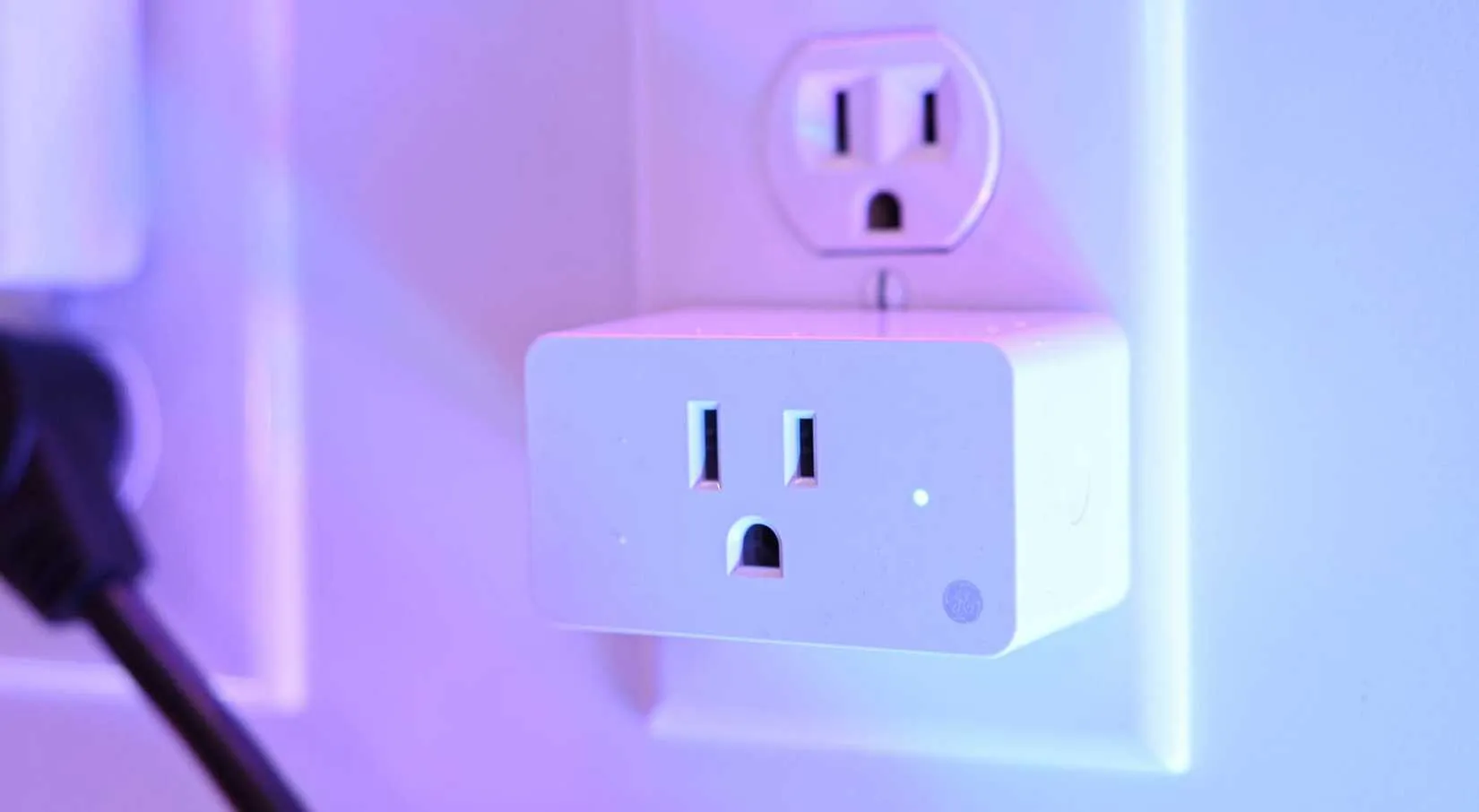

›A small switch in the bathroom transmits signals.
Installing a Zigbee router between the coordinator and the bathroom humidity sensor proved beneficial for signal quality and reliability. The setup allowed for multiple potential insertion points, providing flexibility in device placement.
Deciding on a cost-effective solution, I chose a Zigbee smart plug from the outset. This purchase was sufficient, given that no additional Zigbee devices were required; it could function as a hub and still enable use of the adjacent power outlet for my vacuum cleaner.
Affordable Zigbee smart plugs abound, with options like the Sonoff model costing less than $13, while other budget-friendly alternatives also exist in the market.
Self-healing Zigbee mesh networks adapt their routing over time for optimal performance. When a route becomes compromised or an alternative is discovered, the network seamlessly switches to a new path, ensuring uninterrupted connectivity. In my setup, there was a brief delay before the bathroom's humidity sensor began transmitting signals through the smart plug after being plugged in.
Hours passed before the humidity sensor unexpectedly began utilizing the smart plug as a makeshift router, causing a significant surge in signal strength. As a result, the connection has become remarkably stable, ensuring seamless operation of my automated systems.
Deciding on a cost-effective solution, I chose aZigbee smart plug fromthe outset. This purchase was sufficient, given that no additional Zigbee devices were required; it could function as a hub and still enable use of the adjacent power outlet for my vacuum cleaner.
Affordable Zigbee smart plugs abound, with options like theSonoff model costingless than $13, while other budget-friendly alternatives also exist in the market.
30Mesh network expands with additional router nodes.
›Well-positioned network devices greatly enhance overall system performance.
Adding a smart plug to my Zigbee network enabled multiple devices to leverage its routing capabilities. This included several upstairs sensors, which were previously isolated from the main network. As a result, their connectivity and overall performance saw significant improvements. Connection quality was notably enhanced across the board.
A single router can significantly boost performance, but its impact is amplified when additional routers are strategically integrated into the network. This thoughtful placement of multiple routers creates an abundance of pathways for data transmission, allowing information to traverse routes between devices and the Zigbee coordinator in both directions efficiently.
Adding multiple routers to a mesh network requires some patience as it takes time to establish the most efficient pathways. Devices within the network may experience frequent route changes until they fully integrate and stabilize their connections. Once this process is complete, the network's overall performance improves significantly, reducing dropped connections and ensuring devices remain connected more reliably.
Adding a smart plug to my Zigbee network enabled multipledevicesto leverage its routing capabilities. This included several upstairs sensors, which were previously isolated from the main network. As a result, their connectivity and overall performance saw significant improvements. Connection quality was notably enhanced across the board.
›Just one plug does the trick.
To resolve the issue with my unreliable connection, I simply inserted a Zigbee smart plug into an outlet situated between my Zigbee coordinator and humidity sensor. Introducing strategically placed routers to your Zigbee network can greatly enhance stability, potentially resolving connectivity issues experienced by devices dropping off the mesh.
